PRODUCTS DETAILS

Basic Info.

Model NO.
XL-PL-018
Stock
Not Stock
Mesh Size
1*2m,1.2*2.4m,etc
Hole Shape
Round ,Square etc
Thickness
0.03mm-10mm
Hole Dia.
0.8mm-100mm
Transport Package
Pallet, Wooden Case
Specification
To Order
Trademark
XINLU
Origin
Anping, China
HS Code
73145000
Production Capacity
1000 Square Meters Per Day

Product Description

Material: stainless steel plate , iron plate,copper plate,aluminum plate

Specification:

(1)colded rolled steel sheet
    Thickness:0.2mm-1mm  Length:1mm-20mm  Hole diameter:0.8mm-10mm

(2)Plate
    Thickness:0.3mm-10mm   Size: less than 1.5x3m   Hole diameter : 0.8mm-100mm

The specification only for reference,it can be done according to the requests of the customers.
Widely used product is a material that has been punctured with holes throughout the sheet.


This allows for ventilation and light to be allowed through the sheet. Over thousands of specification can
be customized   middle steel, galvanized steel, stainless steel type 304 and 316, and alumium are all

standard Materials. Sheets up to 15mm thick with perforation sizes ranging from 0.5mm to 100mm can

be punched per sheet, cut to size or custom fabricated for specific requirements.

This Product is Used in the Following Industry Sectors:

  • Chemical
  • Food and beverage
  • Mining
  • Refining
  • Healthcare
  • Architectural
  • Acoustic
  • Automotive
  • Security
  • Pharmaceutical
  • Environmental
  • Electronic

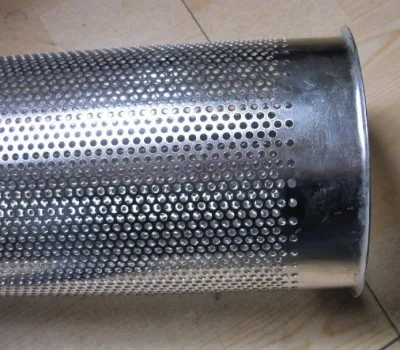

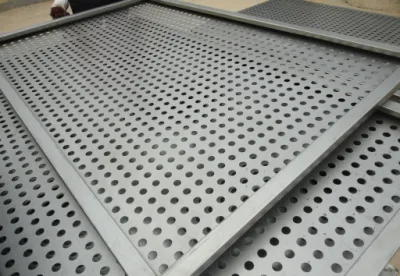

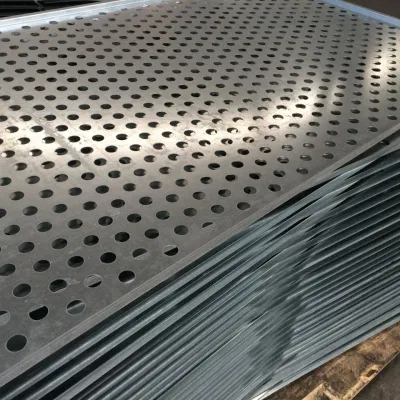

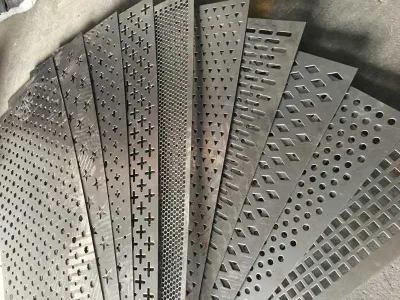

Perforated Mesh Metal Direct Factory (ISO)Perforated Mesh Metal Direct Factory (ISO)Perforated Mesh Metal Direct Factory (ISO)
Norminal
Filter rating
(micron)		 Protective
Layer		 Control Layer Dispersion
Layer		 Reinforcing
Layer		 Reinforcing
Layer		 Thickness
mm		 A.P. at 1000Pa
(L/min/c)		 Mean B.P.P
(mmH2O)		 Weight
Kg/		 Porosity
(%)
1 200 400×3000 200 12×64 64×12 1.7 1.81 360∼600 Five-layer
Sintered wire mesh
(8.4)

Six-layer
Sintered wire mesh
(14.4) 		 About 40%
2 100 325×2300 100 12×64 64×12 1.7 2.35 300∼590
5 100 200×1400 100 12×64 64×12 1.7 2.42 260∼550
10 100 165×1400 100 12×64 64×12 1.7 3.00 220∼500
15 100 165×1200 100 12×64 64×12 1.7 3.41 200∼480
20 100 165×800 100 12×64 64×12 1.7 4.50 170∼450
25 100 165×600 100 12×64 64×12 1.7 6.12 150∼410
30 100 400 100 12×64 64×12 1.7 6.86 120∼390
40 100 325 100 12×64 64×12 1.7 7.10 100∼350
50 100 250 100 12×64 64×12 1.7 8.41 90∼300
75 100 200 100 12×64 64×12 1.7 8.70 80∼250
100 100 150 100 12×64 64×12 1.7 9.10 70∼190
150 50+100+50+30+30+100+50 2.0 25.00 50∼150
200 40+80+40+20+40+80+40 2.0 26.00
