Basic Info.
Model NO.
ALL size
Material
Metal
Certification
ISO 9001:2008
Model Number
Tungsten Carbide 2 Helical
Precision
as Sintered,H6 Ground
Usage
Construcation Tools Parts,Hand Tools
Content
Wc+Co
Application
Production of Gun Drills,Blanks
Transport Package
Plastic&Carton
Specification
D1, 2, 3, 4, 5, , 6, 7, 8, 9
Trademark
WAHEYNAO
Origin
China
HS Code
8208101100
Production Capacity
6 Million PCS Annually
Product Description

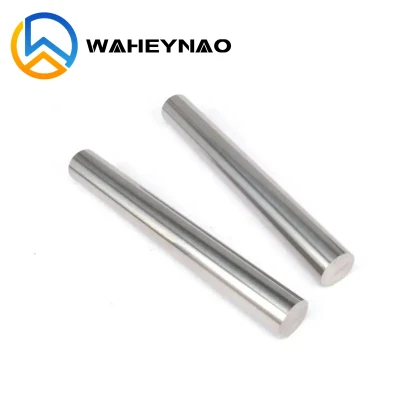

K10 K20 K30 Cemented Tungsten Carbide Rod blank rods
Tungsten carbide rod with single straight holes is tungsten carbide round rod, which has one radial holesThese rods are mainly used for manufacturing mills, drills, drill bits and other tools, but we also use them for processing cold heading die, stamping die, cold punching ball, warheads, watch parts for stamping, punching battery shell, toothpaste tubes and other molds. Our companycan provide quality Tungsten Carbide Single Straight Hole Rods, the following is our common size models.
Types available are:
Tungsten carbide rods diameter from 0.5mm-45mm, length from 38.1mm-1000mm
One coolant hole rods diameter from 3mm -30mm, length is 330mm
Two coolant holes rods diameter from 4mm -20mm, length is 330mm
Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm
Normal Grades are:
WH10 WC: 90%, CO:10%, Grain size: 0.8, Density: 14.4, Hardness: 91.8HRA, T.R.S: 3800
WH06 WC: 94%, CO:6%, Grain size: 0.4, Density: 14.85, Hardness: 94.8HRA, T.R.S: 3800
WH08 WC: 92%, CO:8%, Grain size: 0.4, Density: 14.65, Hardness: 93.6HRA, T.R.S: 3800
WH12 WC: 88%, CO:12%, Grain size: 0.4, Density: 14.25, Hardness: 92.6HRA, T.R.S: 3500
SUitable for making:
carbide end mills carbide drills carb ide reamers carbide taps othe sepcial cutting tools
olerance: h6 as normal requirment: -0.008/0 Runout: 0.005
Any special requiremtn on materials and tolerance are acceptable!
olerance: h6 as normal requirment: -0.008/0 Runout: 0.005
Any special requiremtn on materials and tolerance are acceptable!
| external dia | tolerance | internal dia | length | tolerance |
| D(mm) | (mm) | φ(mm) | L(mm) | (mm) |
| 2.2 | 0~+0.2 | φ0.2 ±0.06~φ9.7±0.3 | 330 | 0~+1.5 |
| 3.2 | 0~+0.2 | 330 | 0~+1.5 | |
| 4.2 | 0~+0.2 | 330 | 0~+1.5 | |
| 5.2 | 0~+0.2 | 330 | 0~+1.5 | |
| 6.2 | 0~+0.2 | 330 | 0~+1.5 | |
| 7.2 | 0~+0.2 | 330 | 0~+1.5 | |
| 8.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 9.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 10.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 11.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 12.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 13.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 14.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 15.2 | 0~+0.3 | 330 | 0~+1.5 | |
| 16.2 | 0~+0.4 | 330 | 0~+1.5 | |
| 17.2 | 0~+0.4 | 330 | 0~+1.5 | |
| 18.2 | 0~+0.4 | 330 | 0~+1.5 | |
| 19.2 | 0~+0.4 | 330 | 0~+1.5 | |
| 20.2 | 0~+0.5 | 330 | 0~+1.5 | |
| 21.2 | 0~+0.5 | 330 | 0~+1.5 |
