Product Description

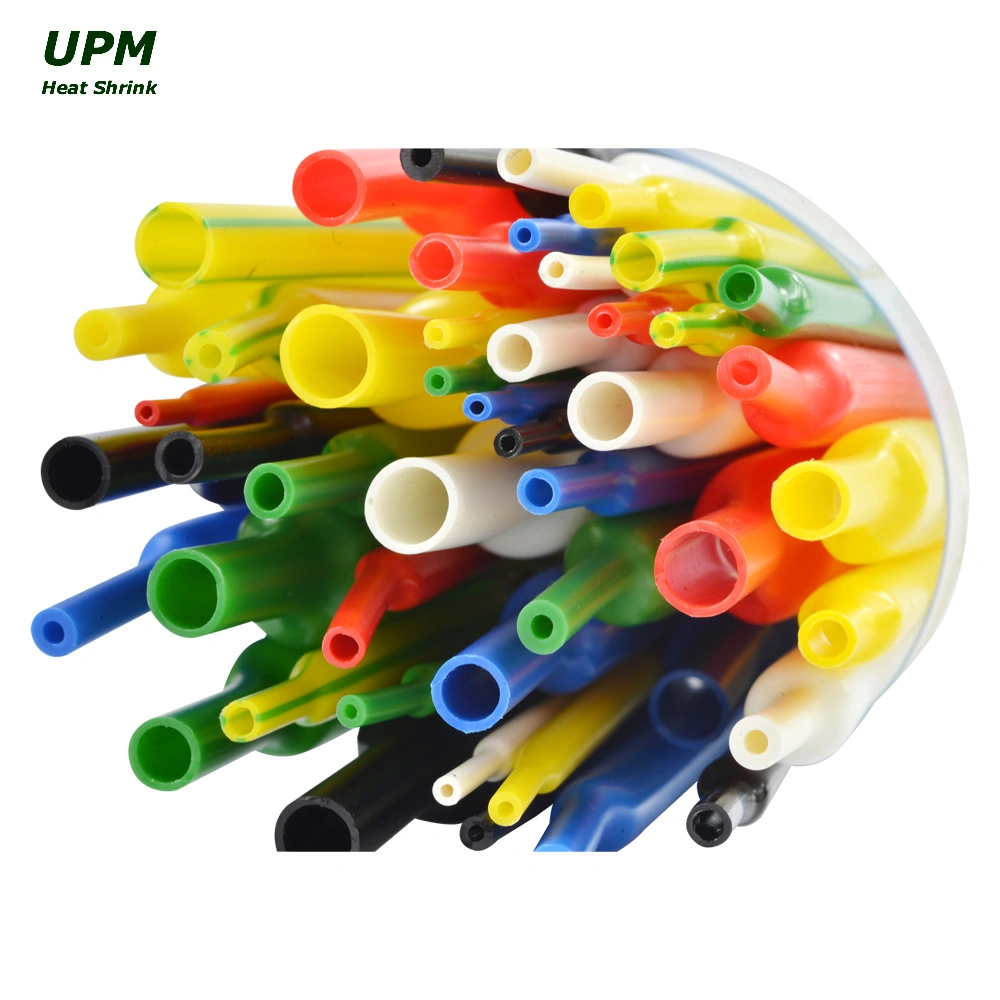

S2(n) Halogen Free Thin Wall Heat Shrink Tubing for General Purpose | ||||
| Features | ||||
| Insulation, Protection,Identification | Operating temperature: -40~125 ºC | |||
| Flame retardant VW-1(except clear) | Shrink temperature: 125 ºC | |||
| Halogen free, Flexible | Shrink Ratio:2:1 | |||
| Wide range of colors | Voltage Class:600~1000 V | |||
| Approvals | ||||
| UL approval | File No.: E236437 | |||
| Technical Data | ||||
| Property | Test Method | Values | ||
| Physical | Density | -- | 1.25~1.35 | |
| Thermal endurance | -- | 125ºC | ||
| Tensile strength | When test at 500mm/min. | ≥10.4 MPa | ||
| Breakdown elongation | When test at 500mm/min. | ≥ 200% | ||
| Aging (158 ºC/168hrs) | Tensile strength | When test at 500mm/min. | ≥ 7.3 MPa | |
| Breakdown elongation | When test at 500mm/min. | ≥ 100% | ||
| Heat shock | 4hrs. at 250ºC | No cracking, drop or flow | ||
| Cold bend | 1 hour at -30ºC | No cracking | ||
| Water absorption 24h at 23ºC | -- | ≤0.5% | ||
| Halogen free | IEC 61249-2-21 | Cl:900ppm max. Br:900ppm max. Total (Cl + Br) : 1500ppm max. | ||
| Electrical | Dielectric breakdown voltage | -- | ≥ AC 2500V | |
| Dielectric voltage Withstand | 1min.AC2500V | No breakdown | ||
| Aging (158 ºC/168hrs) | Dielectric breakdown voltage | -- | AC 2500V min. and more than 50% of the value obtained with unaged sample | |
| Dielectric voltage Withstand | 1min.AC2500V | No breakdown | ||
| Volume resistivity | -- | ≥1014 Ω.cm | ||
| Chemical | Copper stability | 168hrs at 158ºC 500mm/min. | Elongation≥100% | |
| Flammability | UL224 | All tubing test Pass | ||
| Note: The test methods conform to UL224. | ||||
| Dimensions | |||||||||
| Shrink ratio 2:1 | |||||||||
| Reference | As supplied ID (mm) | After recovered(mm) | Standard length | Reference | As supplied ID(mm) | After recovered(mm) | Standard length | ||
| UPM S2(n) | ID max. | WT | m/spool | UPM S2(n) | ID max. | WT | m/spool | ||
| 0.6 | 0.9±0.2 | 0.4 | 0.33±0.10 | 200 | 15.0 | 15.5±0.4 | 7.5 | 0.70±0.10 | 100 |
| 0.8 | 1.1±0.2 | 0.5 | 0.33±0.10 | 200 | 16.0 | 16.5±0.4 | 8.0 | 0.70±0.10 | 100 |
| 1.0 | 1.5±0.2 | 0.7 | 0.36±0.10 | 200 | 17.0 | 17.5±0.4 | 8.5 | 0.70±0.10 | 100 |
| 1.5 | 2.0±0.2 | 0.9 | 0.45±0.10 | 200 | 18.0 | 19.0±0.5 | 9.0 | 0.70±0.10 | 100 |
| 2.0 | 2.5±0.2 | 1.0 | 0.45±0.10 | 200 | 20.0 | 22.0±0.5 | 10.0 | 0.80±0.15 | 100 |
| 2.5 | 3.0±0.2 | 1.3 | 0.45±0.10 | 200 | 22.0 | 24.0±0.5 | 11.0 | 0.80±0.15 | 100 |
| 3.0 | 3.5±0.2 | 1.5 | 0.45±0.10 | 200 | 25.0 | 26.0±0.5 | 12.5 | 0.90±0.15 | 50 |
| 3.5 | 4.0±0.2 | 1.8 | 0.45±0.10 | 200 | 28.0 | 29.0±0.5 | 14.0 | 0.90±0.15 | 50 |
| 4.0 | 4.5±0.2 | 2.0 | 0.45±0.10 | 200 | 30.0 | 31.5±1.0 | 15.0 | 1.00±0.15 | 50 |
| 4.5 | 5.0±0.2 | 2.3 | 0.45±0.10 | 100 | 35.0 | 36.5±1.0 | 17.5 | 1.00±0.15 | 50 |
| 5.0 | 5.5±0.2 | 2.5 | 0.56±0.10 | 100 | 40.0 | 41.5±1.0 | 20.0 | 1.00±0.15 | 50 |
| 5.5 | 6.0±0.2 | 2.8 | 0.56±0.10 | 100 | 45.0 | ≥45 | 22.5 | 1.10±0.15 | 25 |
| 6.0 | 6.5±0.2 | 3.0 | 0.56±0.10 | 100 | 50.0 | ≥50 | 25.0 | 1.10±0.15 | 25 |
| 7.0 | 7.5±0.3 | 3.5 | 0.56±0.10 | 100 | 60.0 | ≥60 | 31.0 | 1.20±0.20 | 25 |
| 8.0 | 8.5±0.3 | 4.0 | 0.56±0.10 | 100 | 70.0 | ≥70 | 36.0 | 1.20±0.20 | 25 |
| 9.0 | 9.5±0.3 | 4.5 | 0.56±0.10 | 100 | 80.0 | ≥80 | 41.0 | 1.30±0.20 | 25 |
| 10.0 | 10.5±0.3 | 5.0 | 0.56±0.10 | 100 | 90.0 | ≥90 | 46.0 | 1.30±0.20 | 25 |
| 11.0 | 11.5±0.3 | 5.5 | 0.56±0.10 | 100 | 100.0 | ≥100 | 51.0 | 1.30±0.20 | 25 |
| 12.0 | 12.5±0.3 | 6.0 | 0.56±0.10 | 100 | 120.0 | ≥120 | 61.0 | 1.30±0.20 | 25 |
| 13.0 | 13.5±0.3 | 6.5 | 0.70±0.10 | 100 | 150.0 | ≥150 | 76.0 | 1.30±0.20 | 25 |
| 14.0 | 14.5±0.3 | 7.0 | 0.70±0.10 | 100 | 180.0 | ≥180 | 91.0 | 1.30±0.20 | 25 |
| Typical application | |||||||||
| Ideal for electrical insulation,strain relief,wire bonding and light harness jacketing | |||||||||
| Common applications include electronic systems of subway, aircraft, submarine control room facilities and sealed environment | |||||||||
| Ordering | |||||||||
| Standard color : Red,Blue, Yellow, Green, Black, Clear | |||||||||
| Special colors are available on request | |||||||||
| Spools as standard, cutting pieces or assorted kits available on request | |||||||||
| Please specify specification, color, quantity when ordering | |||||||||
| Cross reference | |||||||||
| Raychem/Tyco : Versafit V2 / RNF-100 |
