Basic Info.
Model NO.
Incoloy A286
Special Use
Gear, Wheels, Boiler, Pressure Vessel Steel
Product Name
Incoloy A286 Steel Round Bar
Material Number
Incoloy A286
Delivery Condition
Quenched and Tempered
Delivery Term
Fob, CIF, CFR, Exwork, etc
Shipping
by Sea, Air
Quality Inspection
Chemical Composition
Surface
Black, Peeled, Rough Machined, Ground
Length
3-12m Carbon Tool Steel
Packing
Seaworthy Package
MOQ
1 Ton
Transport Package
Seaworthy Packing
Specification
3-12m carbon tool steel
Trademark
BOZHONG or customized
Origin
China
Production Capacity
5000 Tons/Month
Product Description
Incoloy A286 steel round bar
Incoloy A286 steel round bar is a precipitation hardening alloy with high strength and good corrosion resistance at temperatures up to 704 °C.It is used extensively in the petro-chemical, aerospace and oil field industries, especially for fasteners, stud-bolts.
Specification
UNS | W.Nr |
S66286 | 1.4980 |
Chemical composition
Grade | % | Ni | Cr | Mo | B | P | Al | Ti | C | Mn | Si | V | S | Fe |
A-286 | Min | 24 | 13.5 | 1.0 | 0.001 |
|
| 1.75 |
|
|
| 0.10 |
| Bal. |
Max | 27 | 16 | 1.5 | 0.01 | 0.03 | 0.40 | 2.35 | 0.08 | 2.0 | 1.0 | 0.50 | 0.02 |
Mechanical properties:(Minimum value at 20°C)
Tensile Strength σb/MPa | Yield Strength σp0.2/MPa | Elongation σ5 /% |
610 | 270 | 30 |
Standard
Bar | Forging |
ASTM B638
| ASTM B638
|

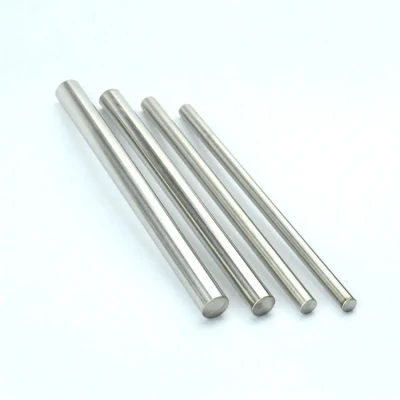

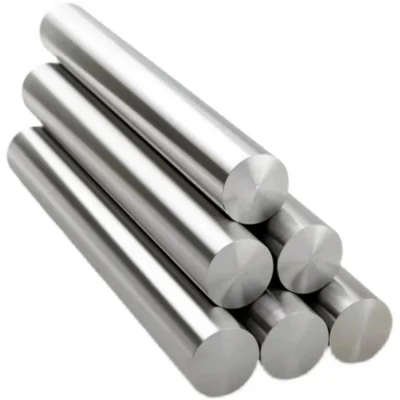

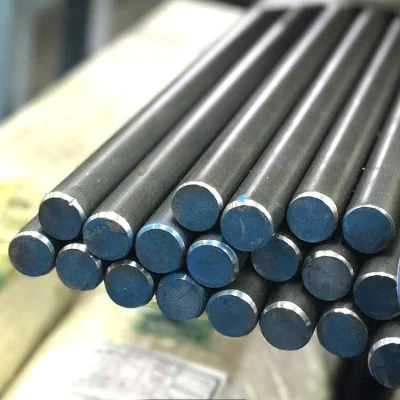

Material Photo:
Applications of DIN 41Cr4 Steel
After quenched and tempered,1.7035 steel can be used in the manufacture of medium speed,the load of parts,such as machine tools gear,shaft,worm,etc. Atfer QT and high-frequency surface hardening,41Cr4 steel is always used in the manufacture of high surface hardness,abrasion resistance parts. After quenching and middle temperature tempering,this material is usually used in the manufacture of overloading,medium speed impact of parts.
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
Company information:
Bozhong Group Mainly supply in forms of coil, sheet, plate, rod, bar, tube, pipe, beam, angle, flange, wire, strip, channel, etc., with various varieties, wide range of dimensions, high purity, stable chemical composition, high dimensional accuracy and excellent surface quality. The products are mainly used in the fields of industries such as automobile engineering, railway transportation, aviation, aerospace, machinery, petrochemical, energy, environmental protection, offshore, chemical, oil & gas, military, power plant, nuclear power, pressure vessel, boiler equipment, mold manufacture, etc.
- steel coil
- steel plate
- steel sheet
- steel bar/rod
steel flat bar
steel square bar
- steel pipe/tube ( welded or seamless )
steel square pipes
steel welded tubes
steel seamless tubes
- steel strip
- steel beam
- steel angle
- steel channel
- steel flange
- Steel wire
Bozhong Group can supply a variety of structural steel, high-strength steel, wear-resistant steel plate, boiler and pressure vessel steel, marine engineering and stainless steel plate in the thick steel and various European standard bars and pipes and profiles.Our global sales and service network throughout all around the world to ensure that the goods reach the customer in the shortest time.
We can follow your drawings and requirements, to provide you with oxygen cutting, plasma cutting and laser cutting and other processing services. You can also perform ultrasonic testing in accordance with EN10160 standard, EN10164 standard test Z15, Z25, Z35, weld bending detection, PWHT detection,etc.
We have ISO9001: 2000 quality management system certification, and obtain the quality certification from all the well-known certification company, including TuV / LRS / GL / CE and so on.
Special steel includes as below:
Boiler and pressure vessel steel
Pipeline steel
Bridge steel
Nuclear power steel
Structural steel
Die steel
High strength steel
Abrasion resistant steel
Weathering, corrosion resistant and fire resistant steel
High rise building steel
Shipbuilding and offshore engineering steel
