Product Description
Seamless pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow - liquids and gases (fluids), slurries, powders and masses of small solids.
1.Steel Tubing is a hollow steel shape intended for structural purposes and made from carbon, stainless, or galvanized steel further divided as:
·Mechanical Tubing is used in low stress applications such as fences, kitchens, restaurants, hospitals, solar panels and made with wall thicknesses up to 10 gauge.
·Structural Tubing is for high stress structural application like bridges, buildings, roll cages, and underwater platforms with wall thickness from 3/16" and up. It is often referred to as Hollow Structural Sections or just the acronym HSS.
2.Pipe is a hollow structure that is intended to carry material such as liquids, gasses, or even solids. Its wall thickness is described by its Schedule and it is often broken down by type using the method of manufacturing it, either ERW or Seamless.
Seamless Pipe (and tubing) is made by extruding a steel block or by drilling a solid steel bar. Next, the extrusion or the drilled steel bar is cold drawn through a dye to achieve the diameter and thickness needed. Because this process can cause mechanical hardening, sometimes the material is annealed and straightened as a final process. Seamless Pipe & Tubing is subdivided as:
Cold Drawn Seamless, or CDS, exhibits precise tolerances and a good surface finish.
Hot Finished Seamless, or HFS, has less critical tolerances and somewhat scaly finish and is not as strong as CDS.
| Standard | API, ASTM, BS, DIN, GB, JIS |
| Outer Diameter | 21.3mm-660mm |
| Wall Thickness | 0.5mm-20mm |
| Dia Tolerance | Control with in the standard, OD:±1%, WT:±10% |
| Materials | 10#, 20#, 45#, Q235, Q345, Q195, Q215, Q345, ASTM A53/A106/A178/A333/A335, ST37, ST37-2, DIN 1629 ST35,ST45,DIN 17175 ST35.8, DIN17175,19Mn5, 16Mn, Q345B, T1, T2, T5, T9, T11, T12, T22, T91, T92, P1, P2, P5, P9, P11,P12, P22, P91, P92,15CrMO,Cr5Mo,10CrMo910, 12CrMo,13CrMo44,30CrMo, GR.1, GR.3, GR.6, GR.7, Gr.B, X42, X46, X52, X60, X65, X70, X80, X100 |
| Zinc coating | Pre galvanized steel pipe: 60-150g/m² Hot dipped galvanized steel pipe:200-400g/m² |
| Type of pipe coating | Epoxy powder |
| Inspection | ISO,BV,SGS,MTC |
| Packing | Steel strip packed. Standard Export Seaworthy Package. Suit forall kinds of transport,or as required |
| Application | Accessorize, machinery parts, structure steel pipe, piling pipe, sewage and clear water transportation, Line pipe for petroleum and so on |
| MOQ | 5metric ton,sample order accepted |
| Shipment time | Within 7-10 workdays after receiving deposit or L/C |
| Market | Southeast Asia, Middle East, Africa, Europe, South American and so on |
| Descriptions | Grades | Standard | Specification (OD*WT)mm | Usage |
| Structural steel pipe | 20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045. | GB/T8162-2008 | 6-1020*1.5-100 | For commom structure |
| Fluid steel pipe | 10#, 20#, ASTM A106, A210, A53, 16Mn, Q345A.B.C.D.E, Q295B.C.D.E | GB/T8163-2008 | 8-630*1.0-40 | Fluid feeding |
| High pressure boiler pipe | 20G, 15MnG, 20MnG, 15CrMoG, 12Cr1MoVG, St35.8, St45, SA106b, SA106c, SA210a, SA210c, A335P2, P11, P12, P22, P91, P92, A213 T2,T9, T11, T12, T22, T23, T91 | GB/5310-2008, ASTM A 106-99, DIN 17175-79 | 14-630*2-80 | Temperature-resistant seamless steel pipe far high-pressure boiler |
| Oil casing pipe | API SPEC 5CT J55, K55, N80, L80, C90, C95, P110 | API SPEC 5CT, SY/T6194-96, GB/T222-84, | 10-530*1.5-36 | Boiler pipes for refinery,heatexchangeing pipes,seamless steel pipes for pipeline |
| Pipeline | API SPEC 5L, X42, X52, X60, X65,X70,X80 ASTM A53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245 | API SPEC 5L, ISO 3183, GB/T 9711 | 60-630*1.5-40 | Carrying gas,water or oil in the industries of petroleum and natural gas |
| Alloy steel pipe | 4140, 42CrMo, 32CrMo, 15CrMo, Cr5Mo, 13CrMo44, 12Cr1MoV P22 T91,P91,P9, T9, Wb36 | GB5310-95, GB9948-88, ASTM A335/A335M, ASTM A213/213M, DIN17175-79, JISG3467-88, JISG3458-88 | 16-824*2-100 | The seamless steal pipes features resistance to high presure,high/low temperature and corrosion ano is used in the industries of petroleum, chemical engineering and. Electric pwer as well as boiler |
| Hydraulic prop pipe | 20#, 45#, 27SiMn, 30CrMoSiA | GB/T17396-2009 | 70-377*9-40 | Coal mine hydraulic support and pillar cylinder, column, can also be used for other hydraulic cylinder, column |
Condition on delivery of steel pipe| Term | Symbol | Explanation |
| Cold-finished/hard (cold-finished as-drawn) | BK | No heat treatment after the last cold-forming process. The tubes therefore have only low deformability. |
| Cold-finished/soft (lightly cold-worked) | BKW | After the last heat treatment there is a light finishing pass (cold drawing) With proper subsequent processing, the tube can be cold-formed (e.g. bent, expanded) within certain limits. |
| Annealed | GBK | After the final cold-forming process the tubes are annealed in a controlled atmosphere or under vacuum. |
| Normalized | NBK | The tubes are annealed above the upper transformation point in a controlled atmosphere or under vacuum. |

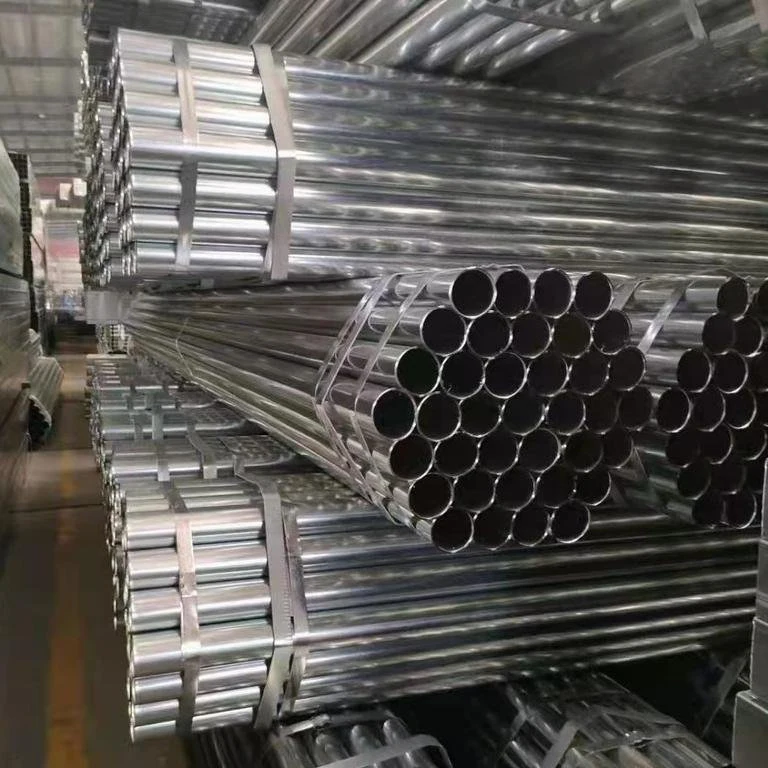

- Plastic caps plugged at the two sides of pipe ends
- Should be avoided by the steel strapping and transport damage
- Bundled signs should be uniform and consistent
- The same bundle(batch) of steel pipe should be came from the same furnace.
- The steel pipe has the same furnace number, the same steel grade, the same specifications.
