Ck45 Hard Chrome Plated Steel Rod Round Bar

CK45 Hard chrome plated steel rod round bar

Product details

Specification:ck45 Hard chrome plated steel rod round bar in stockin Stock

Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430,

Stainless: Steel 304/316/2205, etc

Diameter: Φ6-500mm

Length: max 13m

Chrome layer: 20 micron (min) to 100 micron

Hardness of the chrome layer: 850 HV(min)-1150HV

Roughness: Ra<=0.2u

Straightness: <=0.2/1000

Roundness: Half of the tolerance ISO f7

Delivery condition:  Hard Chrome Piston Rod(HRC 15-20);

                                  Quenched & Tempered( Q+T) Rod(HRC 28-32);

                                  Induction Hardened Rod( HRC 55-62);

                                  Q+T Induction Hardened Rod(HRC 60-65)

Corrosion resistance: Test in natural salt spray according to ASTM B 117-96 hours



Packing: Anti-rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case .

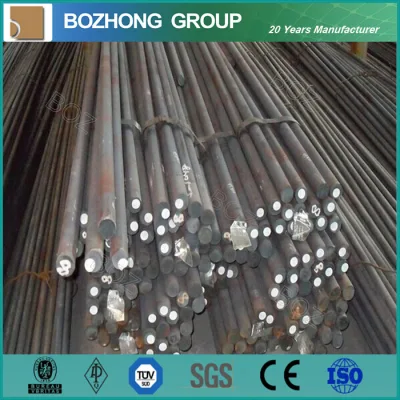

Material photo :



 Delivery Condition

EAF+LF+VD, Hot Rolled or Forged, Black surface or Machined surface (Peeled, Turned,
Grinded), Spheroidizing Annealed, UT 100% Passed

 Characteristics
E52100 is a high carbon, chromium containing low  steel that is through hardening and
noted in particular for use as bearings

 Applications
Principal applications are those for bearings in rotating machinery. Balls, rollers and rings
for roller bearings

 Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET

Company information:

Bozhong Group Mainly supply in forms of coil, sheet, plate, rod, bar, tube, pipe, beam, angle, flange, wire, strip, channel, etc., with various varieties, wide range of dimensions, high purity, stable chemical composition, high dimensional accuracy and excellent surface quality. The products are mainly used in the fields of industries such as automobile engineering, railway transportation, aviation, aerospace, machinery, petrochemical, energy, environmental protection, offshore, chemical, oil & gas, military, power plant, nuclear power, pressure vessel, boiler equipment, mold manufacture, etc.

steel coil
steel plate
steel sheet
steel bar/rod
    steel round bar
    steel flat bar
    steel square bar
steel pipe/tube ( welded or seamless )
    steel round pipes
    steel square pipes
    steel welded tubes
    steel seamless tubes
steel strip
steel beam
steel angle
steel channel
steel flange
Steel wire


Bozhong Group can supply a variety of structural steel, high-strength steel, wear-resistant steel plate, boiler and pressure vessel steel, marine engineering and stainless steel plate in the thick steel and various European standard bars and pipes and profiles.Our global sales and service network throughout all around the world to ensure that the goods reach the customer in the shortest time.

We can follow your drawings and requirements, to provide you with oxygen cutting, plasma cutting and laser cutting and other processing services. You can also perform ultrasonic testing in accordance with EN10160 standard, EN10164 standard test Z15, Z25, Z35, weld bending detection, PWHT detection,etc.

We have ISO9001: 2000 quality management system certification, and obtain the quality certification from all the well-known certification company, including TuV / LRS / GL / CE and so on.

Special steel includes as below:
Boiler and pressure vessel steel
Pipeline steel
Bridge steel
Nuclear power steel
Structural steel
Die steel
High strength steel
Abrasion resistant steel
Weathering, corrosion resistant and fire resistant steel
High rise building steel
Shipbuilding and offshore engineering steel
