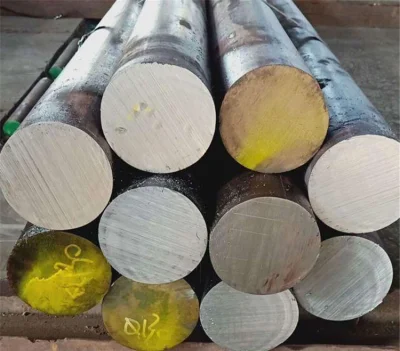

AISI 4130 75K P+X Alloy Steel Round Bar
We manufacture AISI 4130 75K P+X alloy steel round bars. Get high-quality products directly from our factory. Contact us for a quote today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
4130 75K P+X
Trademark
SHUNFU
Origin
China
Production Capacity
50000tons/Year

Product Description

AISI 4130 75K P+X Alloy Steel



Introduce

AISI 4130 75K, PSL 3, API 6A Standards, Temperature Class P+X, NACE MR0175:2015


Chemical Composition

Grade C Mn Cr Mo Si P S Ni Cu V H max. ppm
Min. 0.280 0.400 0.800 0.150 0.150 - - - - - -
Max. 0.330 0.600 1.100 0.250 0.350 0.025 0.025 0.350 0.350 0.300 2.000


Heat Treatment

Normalizing temperature Time Austenizing temperature Time Tempering temperature Time
Min. 1620ºF (899ºC) Min. 60 minutes 1575 - 1625ºF
(857 - 885ºC)		 Min. 60 minutes Min. 1238ºF (670ºC) Min. 60 minutes
Oil or Polymer or Water. For Water Quenching, the temperature of water shall not exceed 38ºC (100ºF) at start of quench. For bath-type quenching, the temperature of water shall not exceed 49ºC(120ºF) at any time during the quench cycle.

Mechanical Properties

as per ASTM E21-20 for P+X Grade
Yield strength
minimum (0.2%)		 Tensile strength minimum Elongation in
2" (minimum)		 Reduction Area
 (minimum)
75 ksi (517MPa) 95 ksi (655 MPa) 18% 35%


Quality Inspection

  1. Specimen test location & QTC
  2. Charpy V-notch impact at 21ºC / -32ºC
  3. Hardness as per ASTM E10-18: On surface / 1" below surface
  4. Volumetric NDE 100% - Ultrasonic
  5. Minimum hot work reduction ratio 4.0 to 1
  6. Grain size should be #S or Finer as per ASTM E112 - 13
  7. Surface inspection
AISI 4130 75K P+X Alloy Steel Round Bar AISI 4130 75K P+X Alloy Steel Round Bar AISI 4130 75K P+X Alloy Steel Round Bar AISI 4130 75K P+X Alloy Steel Round Bar AISI 4130 75K P+X Alloy Steel Round Bar

Hot Products

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
